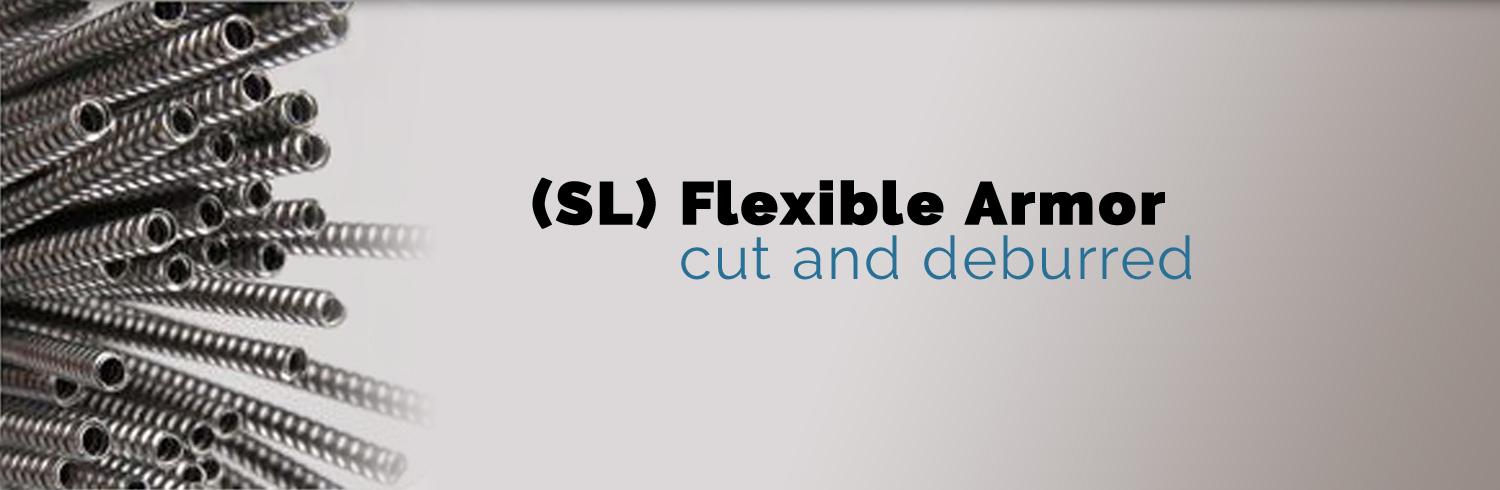

(SL) Flexible Armor - Cut & Deburred
Sizes and Tolerances and Overview
Our cutting and deburring department has over 20 years of experience in the industry. We have the capabiliy to cut and debur large and small quantities of material in varying inside diameters and lengths. Our tolerances on finished lengths is typically less than 1/8" per foot while on many sizes we can hold tolerances of less than 1/8" overall. Delivery for non-stock sizes depends on quantity, however partials shipments are available per request.
Fractional Size | Cut | Length | Nominal InsideDiameter (I.D.) | Nominal OutsideDiameter (O.D.) | Weight/Ft Lb./Kg. | Con-TecPart No.: |
---|---|---|---|---|---|---|
3/32" 2.4mm | 84.25” | 2134mm | .093" -.098" 2.36mm -2.50mm | .140" -.145" 3.56mm -3.68mm | .008 lbs./ft. | 140145x84.25CD |
1/8" 3.5mm | 123.5” | 3137mm | .122" -.128" 3.10mm -3.25mm | .197" -.207" 5.00mm -5.26mm | .030 lbs./ft. | 197207x123.5CD |
5/32" 4.0mm | 59” | 1499mm | .152" -.164" 3.86mm -4.17mm | .235" -.240" 5.97mm -6.10mm | .035 lbs./ft. | 235241x59CD |
5/32" 4.0mm | 21” | 533mm | 152" -.164" 3.86mm -4.17mm | .235" -.240" 5.97mm -6.10mm | .035 lbs./ft | 235241x21CD |
5/32" 4.0mm | 33” | 838mm | 152" -.164" 3.86mm -4.17mm | .235" -.240" 5.97mm -6.10mm | .035 lbs./ft | 235241x33CD |
5/32" 4.0mm | 2.75” | 70mm | 152" -.164" 3.86mm -4.17mm | .235" -.240" 5.97mm -6.10mm | .035 lbs./ft | 235241x2.75CD |
5/32" 4.0mm | 16” | 406mm | 152" -.164" 3.86mm -4.17mm | .235" -.240" 5.97mm -6.10mm | .035 lbs./ft | 235241x16CD |
3/16" 5.0mm | 358” | 9093mm | .183" -.193" 4.65mm -4.90mm | .265" -.270" 6.73mm -6.86mm | .040 lbs./ft. | 265270x358CD |
3/16" 5.0mm | 45” | 1143mm | .183" -.193" 4.65mm -4.90mm | .265" -.270" 6.73mm -6.86mm | .040 lbs./ft | 265270x45CD |
3/16" 5.0mm | 456” | 11582mm | .183" -.193" 4.65mm -4.90mm | .265" -.270" 6.73mm -6.86mm | .040 lbs./ft | 265270x456CD |
7/32" 5.5mm | 22.5” | 572mm | .206" -.221" 5.23mm -5.61mm | .300" -.310" 5.38mm -5.66mm | .043 lbs./ft. | 300310x22.5CD |
1/4" 6.0mm | 334.50 | 8496mm | .242" -.260" 6.15mm -6.60mm | .340" -.345" 8.50mm -.8.76mm | .045 lbs./ft. | 340345x334.5CD |
